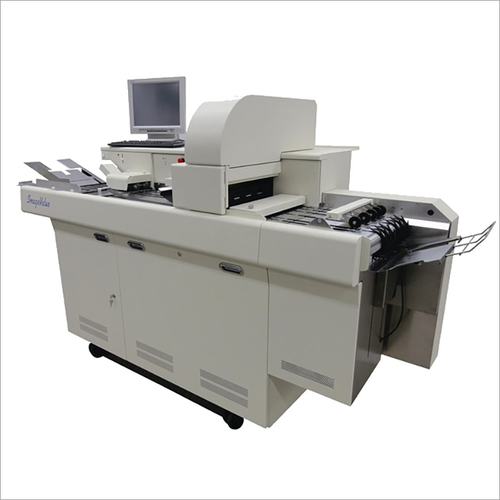

Image Value 20 High-Speed Color Image Document Scanner
X
Product Description
High-speed and efficacy of this Image Value 20 High-Speed Color Image Document Scanner ensures unmatched resolution of 150 - 600 DPI. This is designed with open track structure and flat full-open transfer mechanism to provide easy operation. It comes with stable and uniform processing of mixed-size-and-weight business forms with its matchless option of transfer speed selection. It is loaded with variable IJP and a modern camera with IJP printing position automatic control function. In addition to this, it is designed with super luminosity LED to ensure high-definition image.
With spindle-type storage pocket, this Image Value 20 High-Speed Color Image Document Scanner stores the papers neatly in tray. Well equipped with multi-feed detection and tilt correction features, this scanner enhances the productivity with precision. It is featured with different image functions from auto cropping, sRGB Convert, Auto brightness Control, Auto-Deskew, Color dropout to Snippet to offer the best scanning quality.
Specifications :
- Scanning Speed (Selectable)
- 300 documents(A4)/minute (200dpi)
- 450 documents(A4)/minute (200dpi)
- 600 documents(A4)/minute (200dpi)
- Hopper capacity : 1,500 sheets (64gsm paper)
- Pocket Capacity : 1,000 sheets (64gsm paper)
- Safety : CE , UL
Features :
- High cost performance realized by the world's top-class speed
- Open track structure that allows easy operation
- Stable transfer realized by incorporation of flat full-open transfer mechanism
- Stable processing of mixed-size-and-weight business forms
Image Value 20 Provides world's top-class high-quality image and optimal performance. << File Product1 >>
- High cost performance realized by the world's top-class speed
- Open track structure that allows easy operation
- Stable transfer realized by incorporation of flat full-open transfer mechanism
- Stable processing of mixed-size-and-weight business forms by transfer speed selection and vacuum transfer
- High-definition color reproduction realized by Primagest unique technology and adoption of the sRGB international standard
1. Continuous processing is possible << Picture Product1-1 >>
- Mixed-size-and-weight business forms are stably processed
- Originals can be inserted during operation
2. Mounted with variable IJP and a high-quality camera << Picture Product1-2 >>
- IJP printing position automatic control function
- High-definition image realized by super luminosity LED
3. Spindle-type storage pocket << Picture Product1-3 >>
- Stored neatly in power pocket tray
- Take out during operation is possible
4. Sheet feeding mechanism << Picture Product1-4 >>
- Equipped with both multi-feed detection and tilt correction functions
- Improved stability in transfer of various size-and-weight of business forms
Specifications :
| Image Value 20 | Scanner model | ||
| Model and Features V2.2) | Mode l300 | Mode l450 | Mode l600 |
| | IV300 | IV450 | IV600 |
| Base Unit | |||
| Transport mechanism | Open track air vacuum method for varied-size documents | ||
| Transport functions | Auto and hand feeder with 3 ultrasonic doubles detections, and automatic deskew mechanism with skew sensors, | ||
| Optional gap control to enhance varied-size-paper transport speed | |||
| Max speed Output resolution 1 | 300 DPM.-200 DPI | 450 DPM-200 DPI | 600 DPM-200 DPI |
| (8.27" x 11.69" sheet with about 3" gap | 300 DPM-300 DPI | 300 DPM-300 DPI | 300 DPM-300 DPI |
| Light source | Japanese high efficient super luminosity LED | ||
| Image functions | Auto cropping, Auto-Deskew, Color dropout, RGB Convert, Auto brightness Control, Snippet, | ||
| and etc. | |||
| Paper spec. | |||
| Paper Size | Min. 2.52" X 3.26", Max 11.69" X 16.53" (A3) | ||
| Paper Weight 2 | 11 lbs. - 55 lbs. | 11 lbs. - 48 lbs. (450 sheets / min) | 17 lbs. - 48 lbs. (600 sheets / min) |
| 11 lbs. - 55 lbs. (300 sheets / min) | 11 lbs. - 55 lbs. (300 sheets / min)) | ||
| Paper Quality | OCR paper, high quality plain paper, recycle paper, pressure-sensitive paper 3 | ||
| Front Image Camera (Optional back camera) | |||
| Camera specification | Ultra-High-Speed 300 DPI R, G, B, 24bit full color (256 tone), Japanese High-Resolution CCD color camera | ||
| Output Resolution | 150 - 600 DPI | ||
| (Output Format) | Color(JPEG 24bit), Gray(JPEG 8bit), | ||
| | Black and hite bi-tonal(TIFF) (optional JPEG2000) | ||
| Hopper | |||
| Capacity 4 | 1500 sheets | ||
| | |||
| Size | Standard small spindle power pocket | ||
| (Optional large spindle pocket for folded A3) | |||
| Capacity 4 | 1000 sheets | ||
| Control PC | |||
| OS: Windows | Windows7 Professional, Windows10 | ||
| Interface | TCP/IP 1GB or faster, PIPE, TWAIN DRIVER | ||
| Options | |||
| Back Image Camera | Same specification with front camera | ||
| Numbering (IJP) 7 | |||
| Pre-module 5 | 100 characters / line | 100 characters / line | 100 characters / line |
| Font Only | Max 5 lines in 0.5 inch | Max 3 lines in 0.5 inch | Max 2 lines in 0.5 inch |
| Characters | OCR-B, Gothic, Ming, etc. | OCR-B, Gothic, Ming, etc. | OCR-B, Gothic, Ming, etc. |
| Font type | |||
| Pre-module 5 | 1D Code39, NW7 (CodaBar), ITF, Code128, 2D QR 300 Sheets mode Only | ||
| Post-module 6 | same as the specification of the pre-module | ||
| Recognition | |||
| Barcode | Available | ||
| Software | |||
| Characters 8 | Available | ||
| Software | |||
| Install | |||
| Machine Dimension (W X D X H) | 2275 x 820 x 1370 mm (89.4" X 32.2" X 53.7") | ||
| Weight 9 | 267 Kg (578.6 lbs). | ||
| Power (50/60Hz) | Single phase 100-240V | ||
| Temperature / Humidity | 16 - 26, 40 - 60% | ||
Specification may be changed without notice.
- DPM=Documents Per Minute. The max processing speed per minute is based on the condition. A4 landscape papers are transported with standard feed setting. The max speed may be decreased, because of option configuration, paper quality, paper related settings, software settings,. image output sizes, and etc.
- Paper quality and paper size may be affect transport speed. Please test before order.
- Pressure-sensitive paper and recycle paper require a confirmation.
- The paper weight is 17 lbs. (A4).
- A print module before scanning. Please check the number of print lines, characters per line, and font types.
- A print module after scanning. Please check the number of print lines, characters per line, and font types. (Left aligned and right aligned is OK.)
- Print quality of IJP (Inkjet Printer) depends on transport speed, also paper quality. IJP may not print on gloss papers. Please check the number of print characters, print lines, and font type beforehand.
- Please ask Primagest on recognizable font types.
- The weight does not include PC, and display.
